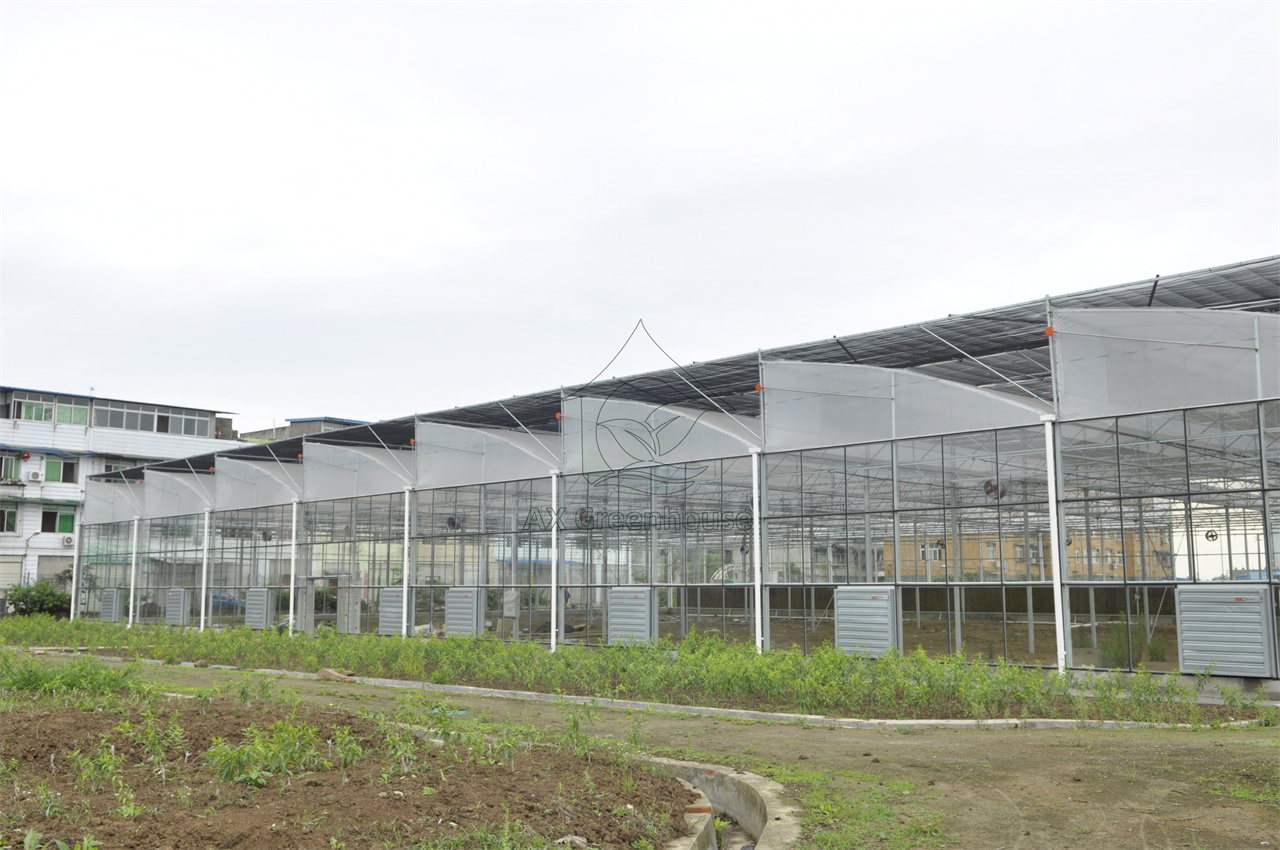

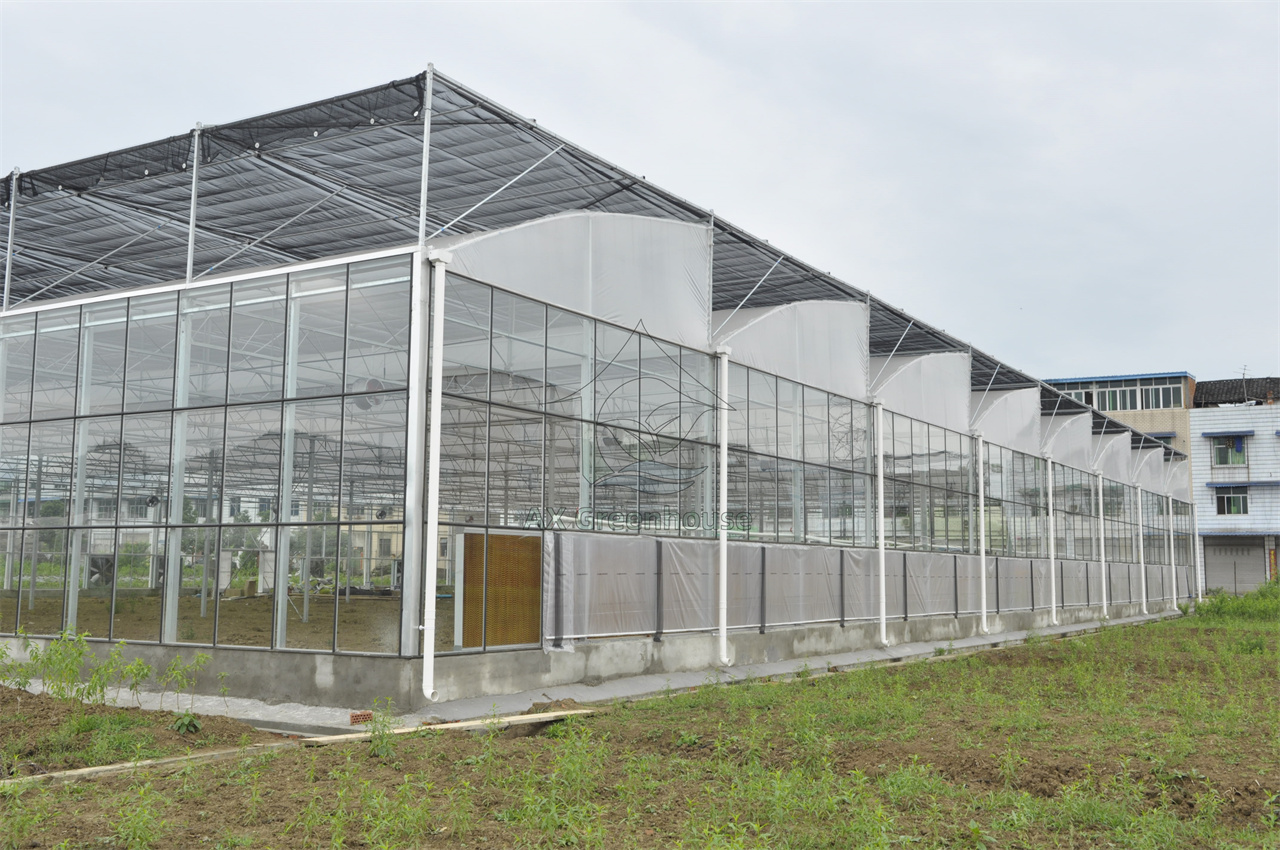

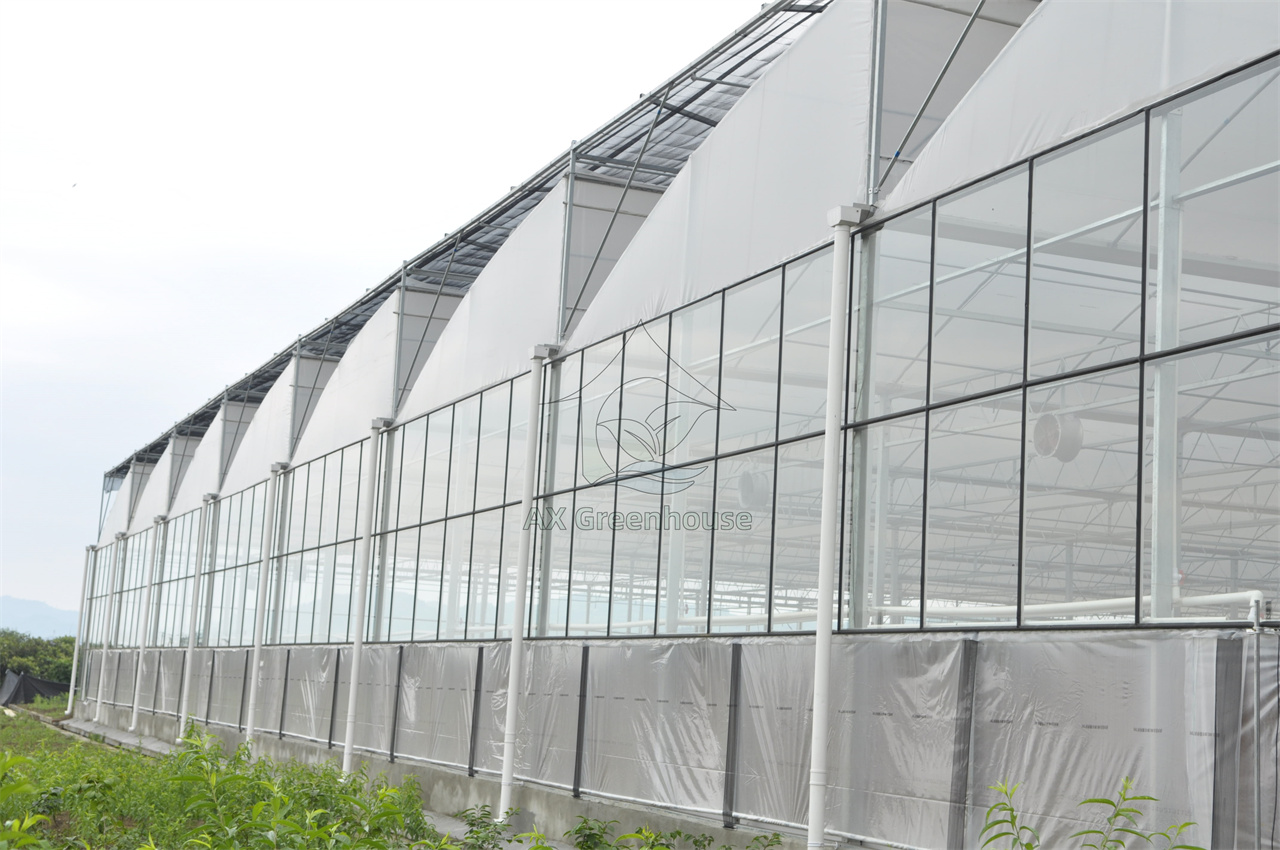

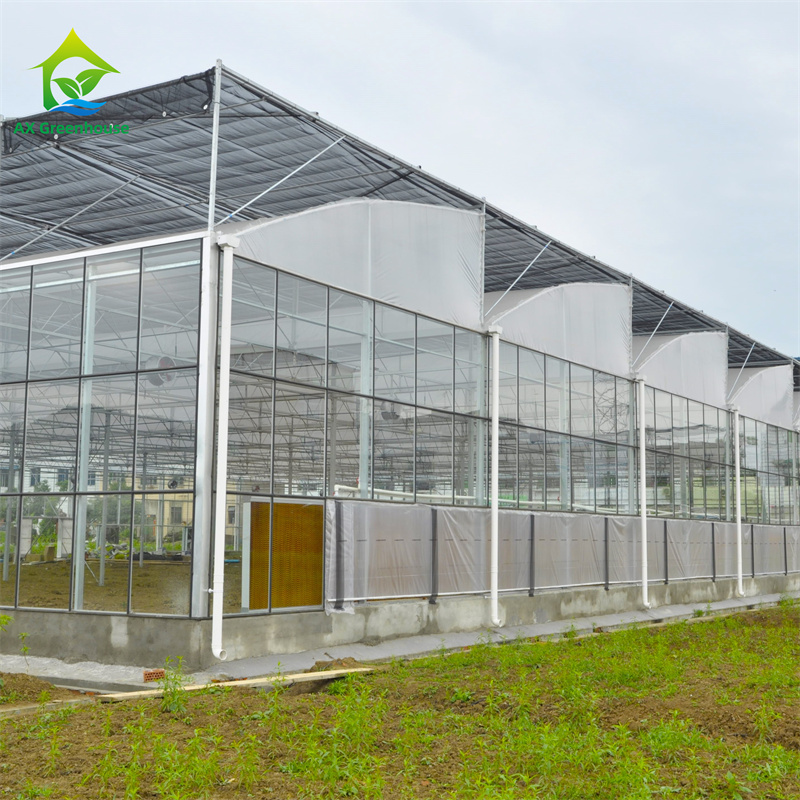

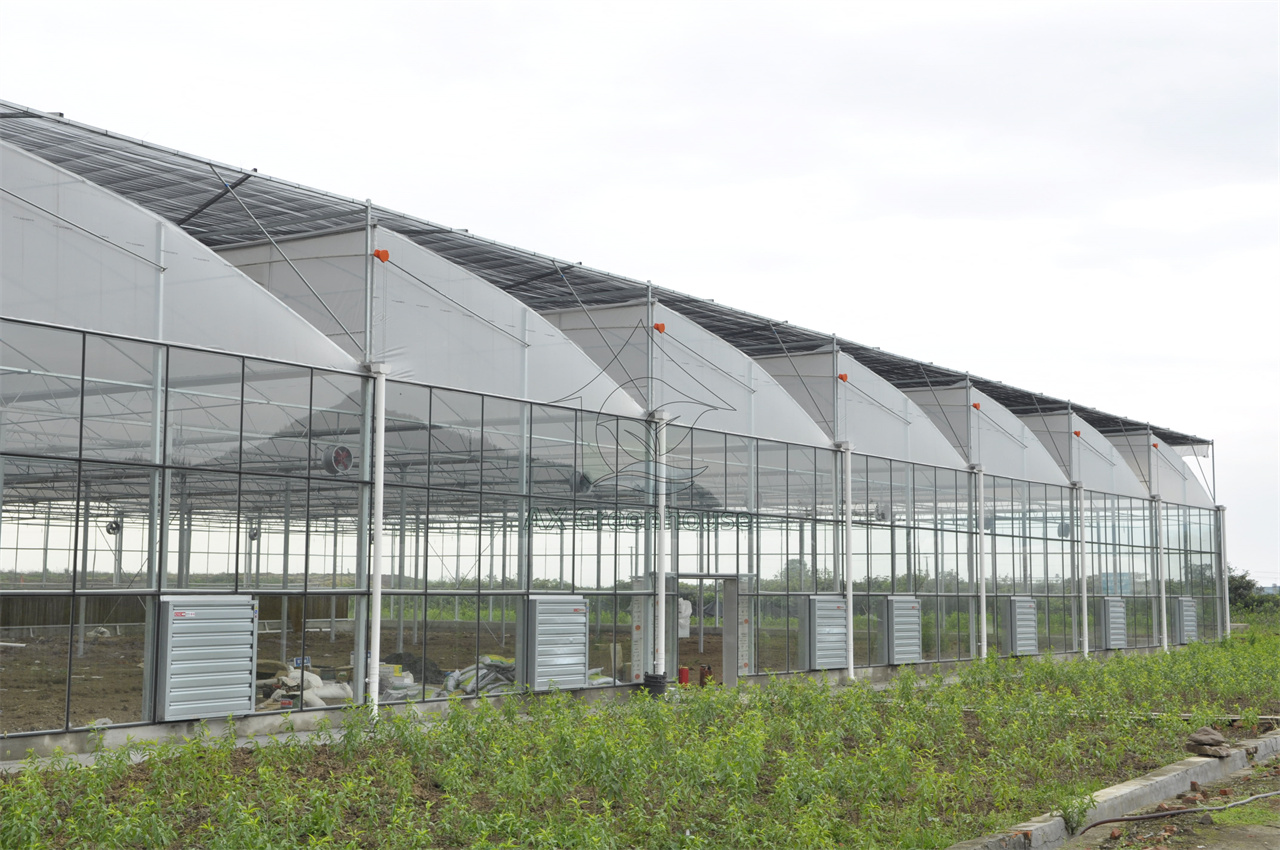

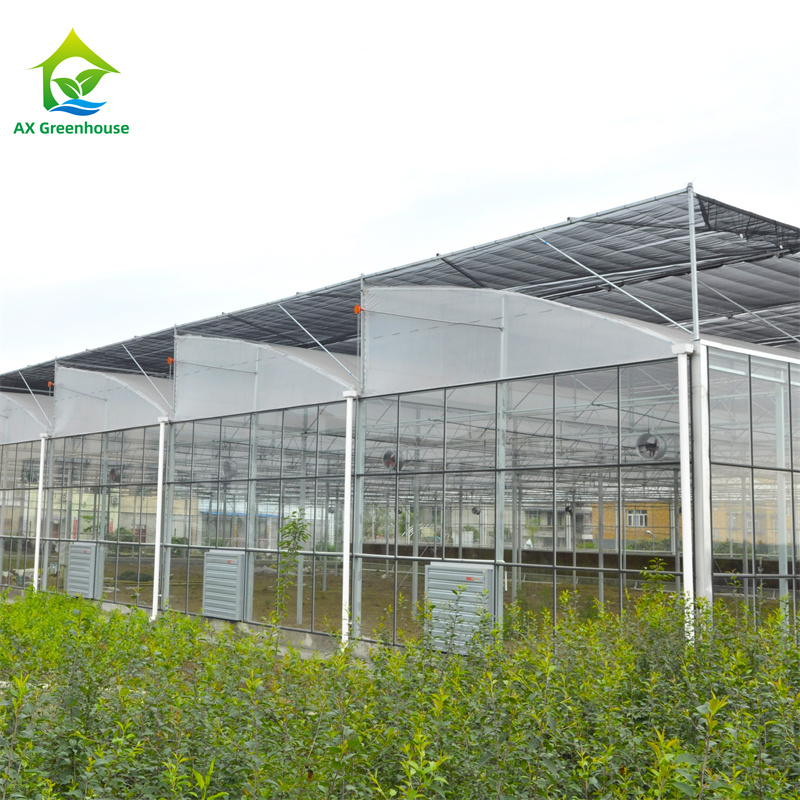

The glass sawtooth multi-span greenhouse is a high-end agricultural facility that integrates modern aesthetics, efficient production and intelligent control. It innovatively adopts a design that combines glass walls with sawtooth-shaped film roofs and integrates an external shading system, perfectly balancing the greenhouse’s light transmission, heat preservation, ventilation efficiency and climate regulation capabilities. It is an ideal solution tailored for modern large-scale and refined agricultural planting.

Product Features

• Glass wall – Ultimate light transmission and durability
• Sawtooth-shaped film roof – Excellent ventilation and heat dissipation
• Top external sunshade net – Efficient and intelligent light and temperature management
• Multi-span design – Maximizing land utilization

Technical specifications (optional)

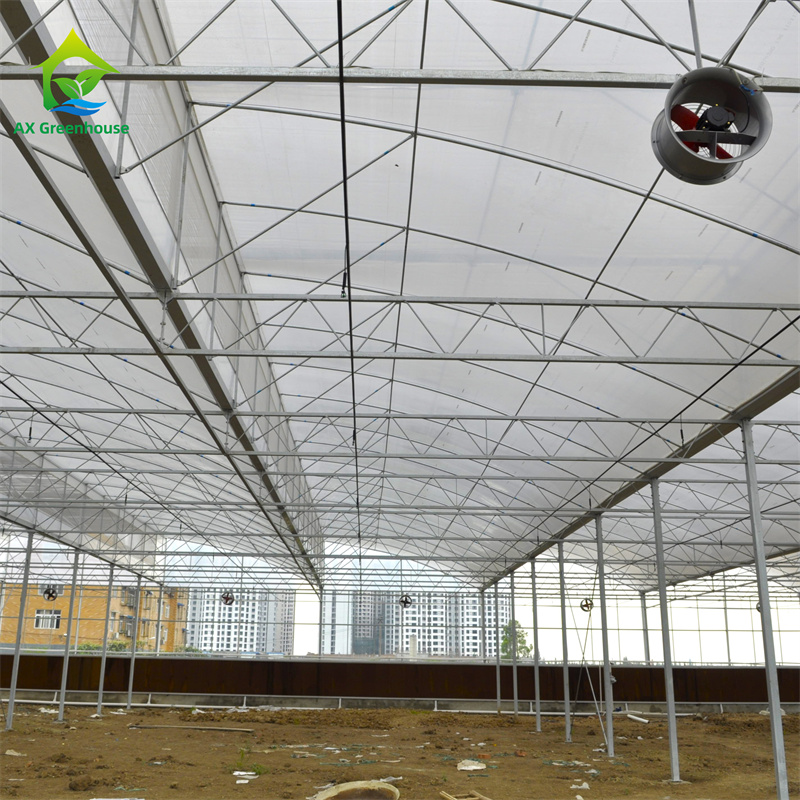

• Main structure: Hot-dip galvanized steel frame, corrosion-resistant, with a design life of over 20 years.
• Covering material: Wall – 4/5mm tempered glass; Roof – 150-200μm PO/PE long-lasting drip-free film.
• Sunshade system: Aluminum foil sunshade net/black and white sunshade net. The sunshade rate can be selected according to requirements (50%-85%).
• Ventilation system: Sawtooth roof skylight, optional electric rack and pinion drive system.
• Supporting systems: It can integrate fan wet curtain cooling system, internal insulation system, supplementary lighting system, CO₂ fertilization system, water and fertilizer integrated irrigation system, etc.Control System: Equipped with a standard intelligent environmental control system, it can remotely monitor and
• Adjust indoor environmental parameters such as temperature, light, water, air and fertilizer through a computer or mobile phone APP.
