| Frame structure | (1) Hot dip galvanized steel Frame
(2) Main post: 150*150mm-100*100mm
(3) Auxiliary post : 120*60mm-100*50mm
(4) Thickness: 1-2.5mm
(5) Truss: 50*50*2.5mm
(6) Zinc coating: average 210g/㎡
(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡
|
| Covering | (1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm
(2) Polycarbonate: double/three layers
(3) Tempered glass
Single layer: 4mm/5mm
Double layer 5+6+5 mm Can be customized according to customer requirements |
| Parameters | (1) Wind load: 0.55KN/㎡
(2) Snow load: 0.45KN/㎡
(3) Maximum rainfall: 140mm/h
(4) Planting bearing: 0.2KN /㎡
|
| Characteristics |
1.Use accessories connect without welding
2.High quality hot dip galvanized steel frame,corrosion resistance, service life more than15 years
3.Covering materials include PO/ PEP/ HDPE woven plastic film, Polycarbonate, and Tempered Glasses
4. It can be matched with a variety of intelligent systems to achieve intelligent control 5. Provide a comfortable environment for plant growth and increase production
|

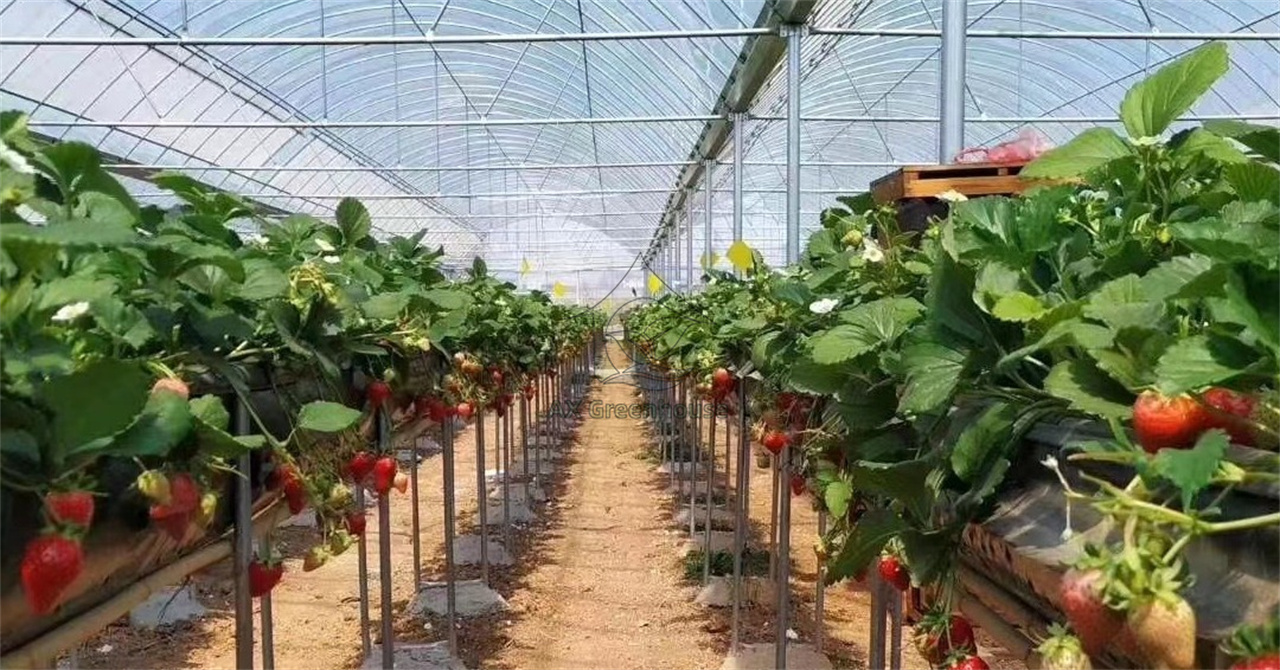

Multi-span film greenhouse for strawberry cultivation

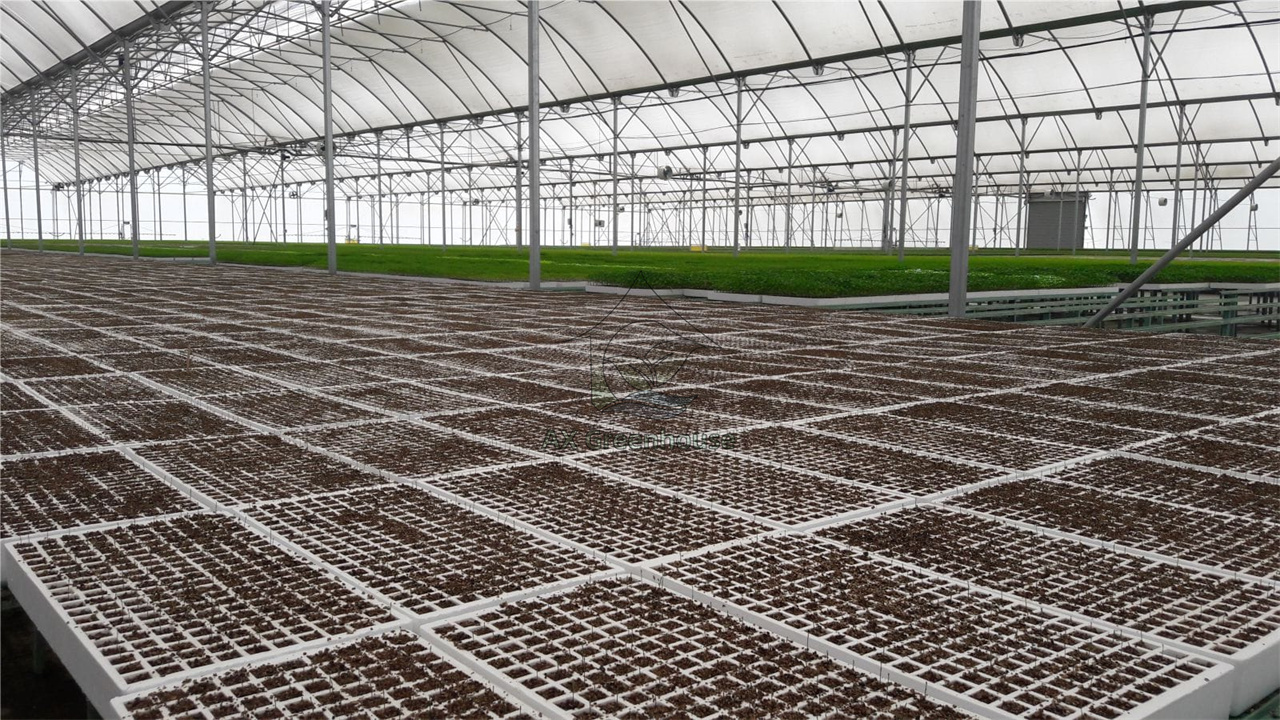

Multi-span film greenhouse for seedling cultivation

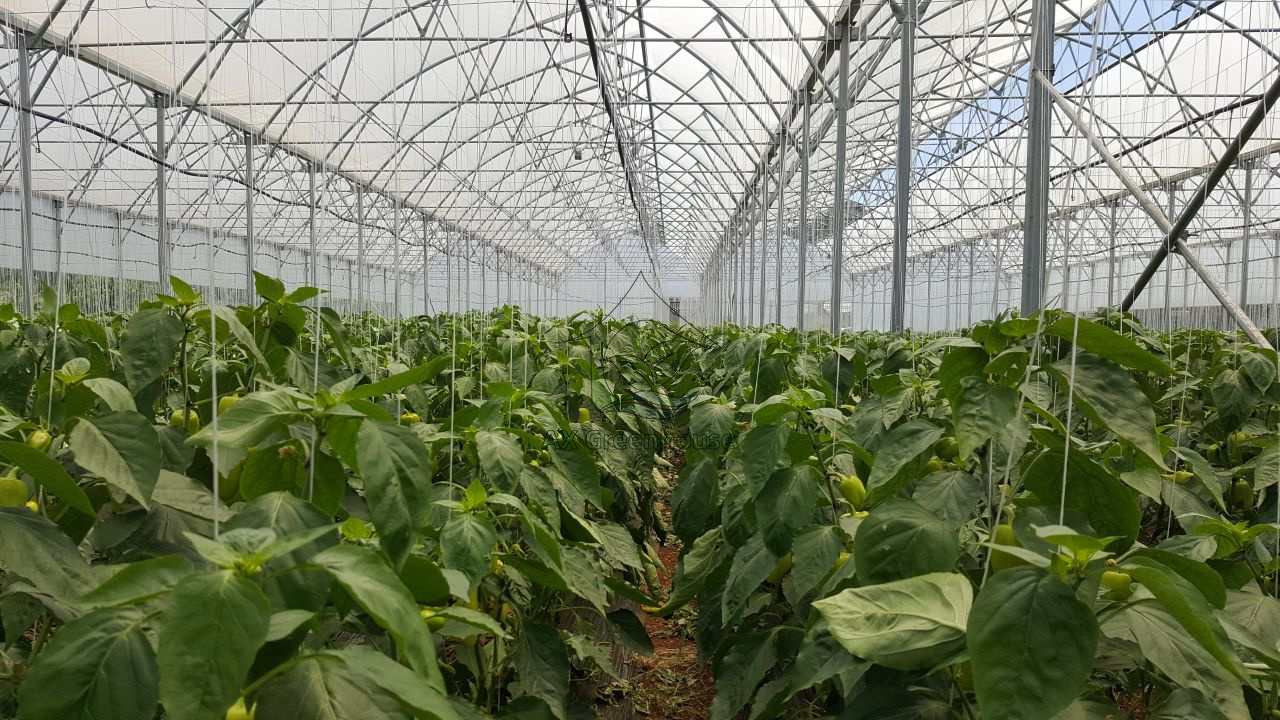

Multi-span film greenhouse for pepper cultivation
